Basic Info.
Model NO.
1.2344 / H13 / SKD61
Workmanship
ESR
Shapes
flat /round
Quality Guarantee
100% UT passed
Delivery Time
7days
Condition
stock
service
free sample
Transport Package
Standard/Customized
Specification
standard/customized
Trademark
customized
Origin
China
HS Code
7225401000
Production Capacity
1000 Tons/ Month
Product Description
1.2344 Hot Work Mould Steel ESR/EAF Turned H13 / SKD61Mould Steel
Features
Chemical Composition
Heat Treatment
General Applications
Die casting, forging, extrusion and pressing dies, shear blades, sleeves, plunger and etc.
It has air hardening with good toughness, resistance to abrasion and high red hardness. It resists softening to 550°C and has good resistance to heat checking. Will Nitride with a case hardness over 1000 V.P.N. Generally supplied annealed to HB 230 max.
Features
- 1 Electroslag remelting steel, high purity, good resistance to dissolve
- 2. Organizational structure of uniform, better heat resistance with good toughness, high temperature resistance metal erosion
- 3. Good resistance to high temperature tempering performance, hardness steady working under 600ºC, dimensional accuracy stability durability.
- 4. Cold and hot fatigue resistance, strong ability to resist crack.
| Standard | AISI/SAE | W.Nr/DIN | JIS | GB | ASSAB |
| Grade | H13 | 1.2344 | SKD61 | 4Cr5MoSiV1 | 8407 |
Chemical Composition
| Grades | C | Si | Mn | P | S | Mo | V | Cr |
| 1.2344 | 0.38-0.42 | 0.8-1.2 | 0.3-0.5 | ≤0.015 | ≤0.002 | 1.2-1.5 | 0.9-1.1 | 4.8-5.5 |
| H13/SKD61/4Cr5MoSiV1 | 0.32-0.45 | 0.8-1.2 | 0.2-0.5 | ≤0.03 | ≤0.03 | 1.1-1.75 | 0.8-1.2 | 4.75-5.5 |
Heat Treatment
| Quenching ºC | Tempering ºC/HRC | ||||||||
| 1020-1050 | 100 | 200 | 300 | 400 | 500 | 550 | 600 | 650 | 700 |
| Air/oil/salt bath | 52 | 52 | 52 | 54 | 54 | 54 | 50 | 42 | 32 |
Die casting, forging, extrusion and pressing dies, shear blades, sleeves, plunger and etc.
It has air hardening with good toughness, resistance to abrasion and high red hardness. It resists softening to 550°C and has good resistance to heat checking. Will Nitride with a case hardness over 1000 V.P.N. Generally supplied annealed to HB 230 max.
- 1 Full hardness (52-54HRC) plastic moulds with high polishing and long lifetime requirments, such as bakelite plastic mould.
- 2. Lead,Zn and Al alloy die casting moulds, such as engine radiater, lights and other decorative products
- 3. Aluminum extruded moulds, such as aluminum window frame, computer radiater.
- 4. Hot forging moulds, such as auto connecting rods, crank, stainless dinner knife.
- 5. Cu alloy extruded and die casting moulds.
- 6. Casting moulds, extruded moulds,forging moulds
| Grade | H13 / 1.2344 / SKD61 | ||
| Size | Thickness | Width | |
| Flat Bar | 16-260mm | 205-610mm | |

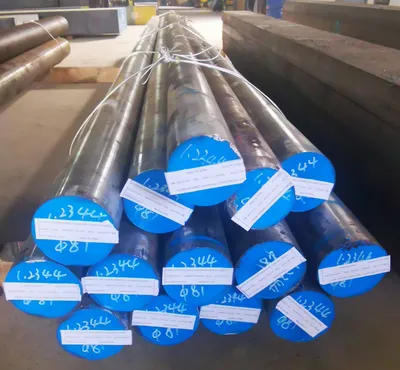

| Round Bar | 16-450mm | ||
| Die Block | 100-500mm | 600-1000mm | |
| Sample | FREE SAMPLE, Size: 35*35mm By courier (DHL/UPS/EMS...) , Freight collect: 5-7Days | ||
| Surface | Milling/ Black | ||
| Orginal | CHINA | ||
| Technological Process | CUTTING STEEL MATERIAL- Flate/ Round (Vertical Cutting/ Horizontal Cutting machine) Side Milling (Plate: 2 / 4 side milling) Round Milling (Round: Cold draw/ Grinding/ Turned, Etc.) MACHINE MILLING (Plane washing/ Peeling Machine) Block Cutting(Customized Size) Machine Grinding (Grinding Machine / Cold Draw Machine) | ||
| Heat Treatment | H13 / 1.2344 / SKD61 steel Annealing: 750 to 800ºC, slow cooling in furnace (10-20ºC/hr), down to 600ºC, cooling in air. Hardness after annealing: max. 230 HB. Stress relieving: 600 to 650ºC, slow cooling in furnace. Hold in neutral atmosphere for 1 to 2hours. Hardening: 1020 to 1080ºC, oil/air, hold 20 to 30 minutes. Hardness , 52 to 56 HRC in oil, 50 to 54 HRC in air. Tempering: 560 to 580ºC. Slowly heating to tempering temperature right after hardening. Recommended to temper at least twice. The second tempering temperature shall be approx. 20 to 30ºC lower than the first tempering. | ||
| Features | 1 Electroslag remelting steel, high purity, good resistance to dissolve 2. Organizational structure of uniform, better heat resistance with good toughness, high temperature resistance metal erosion 3. Good resistance to high temperature tempering performance, hardness steady working under 600ºC, dimensional accuracy stability durability. 4. Cold and hot fatigue resistance, strong ability to resist crack. | ||
| Applications | Heavy duty hot work tools and dies: mandrels, dies, and containers for metal tube and rod extrusion; hot extrusion equipment; tools and dies for the manufacture of hollow bodies, screws, rivets, nuts, and bolts. Die casting equipment, forming dies, die inserts, hot shear blades, and plastic moulding dies. | ||
| Delivery | For abundant stock, 15-20 days.For customized products, 30-50 days. | ||

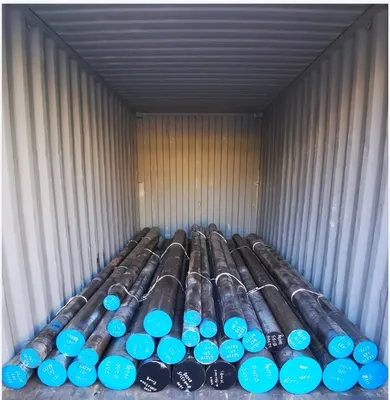

| Packing | We provide standard export packing or according to customers' request. | ||
