Product Description

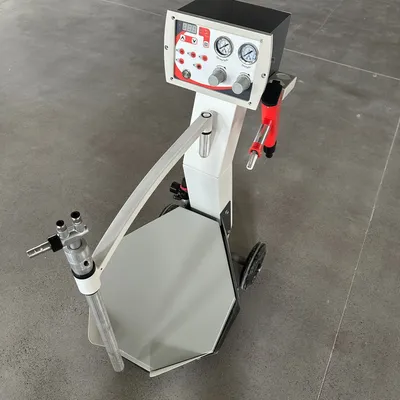

Litone Metal Manual Electroc Powder Coating Machine (K-1B)
To meet the requirement for frequent color changes,four mode storage can handle most workpieces.Material cylinder electrostatic manual powder coating equipment
1. Material cylinder Feed Powder Coating Unit
2. Material cylinder Feed Powder Coating equipment
3. New spray gun GM03 with high quality
2. Continuous, tightly sealed gun body with separate channels for cascade and rinsing air.
3.Continuous guided powder tube, self-sealing.
4.Powder tube coupling with quick-release fastener
5.Covered hose and cable ducting
7. Easily dismantlable by a few hand movements, therefore very easy to service
8.Few wear parts (powder tube, nozzle ,insert)
9. Self-sealing powder tube (housing tube seat)
10.Easily removable cascade because free of grease, with integrated current limiting resistors
Dimensions
| LITONE K1 | |
| Length | 480mm |
| Width | 680mm |
| Height | 1080mm |
| Weight | 42kg |
| LITONE K1 | |
| Input voltage | 220V (100V~240V) |
| Frequency | 50-60Hz |
| LITONE K1 | |
| Min.input pressure(dynamical) | 5bar |
| Max-input pressure | 8bar |
| Max.water vapor | 1.3g/m3 |
| Max.compressed air consumption | 0.1mg/ m3 |
| Max.compressed air consumption | 19Nm3/h |
| LITONE K1 | |
| Temperature range | 10ºC-40ºC |
Litone K-1B powder coating machine - overview
Typical characteristics
Litone powder coating machine can be easily dismantled and is therefore maintenance and repair-friendly.
Continuous guided powder tube, self-sealin Powder tube coupling with quick-release fastener
Covered hose and cable ducting
Excellent access to the connections due to snap lock
Easily dismantlable by a few hand movements, therefore very easy to service
Few wear parts (powder tube, nozzle ,insert)
Self-sealing powder tube (housing tube seat)
Easily removable cascade because free of grease, with integrated current limiting resistors
Scope of delivery
Litone K-1B manual powder coating control unit
Litone GLQ-L-1BL Manual powder coating gun
Trolley
Powder hose
Air hose
4m cable
Parts set
1. who are we?
We are based in Shandong, China, start from 2020,sell to North America(25.00%),Southeast Asia(10.00%),South Asia(10.00%),Eastern Asia(10.00%),Mid East(6.00%),Africa(5.00%),Domestic Market(5.00%),Northern Europe(5.00%),Western Europe(5.00%),Southern Europe(5.00%),South America(5.00%),Central America(4.00%),Eastern Europe(3.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
powder coating machine,powde coating line,powder coating gun,powder coating equipment,powder coating equipment parts
4. why should you buy from us not from other suppliers?
Our company has more than 10 years of experience in electrostatic spraying industry, and can provide customers with various complex spraying solutions and best services, including: spraying machine, spray gun, spray room, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,Russian
