Basic Info.
Model NO.
ZZ-
Condition
New
Product
Plastic Vacuum Metallizing Machine
Business Type
China Manufacturer/Supplier
Structure 1
Vertical, Double Door
Structurer 2
Horizontal, Single Door
Size
Customized
Control System
Manual Automatic All-in-One
Operating System
PLC Touching Screen
Coating Film
Aluminum
Chamber Material
Stainless Steel or Carbon Steel
Technology
PVD Coating with Vacuum Process
Transport Package
Wooden Package
Specification
1200*1400mm, 1400*1600mm, 1600*1800mm, 1800*2000mm
Trademark
HUICHENG
Origin
Guangdong Dongguan, China
HS Code
8543300090
Product Description
HCVAC-MAKE YOUR WORLD MORE BEAUTIFUL
Plastic Aluminum Evaporation Vacuum Metallizing Machine,pvd plating equipment
1. Vacuum process;
2. Non-pollution
3. Get metallized and colorful film
4. Full automatic
Plastic evaporation vacuum metallizing machine is evaporation-coated device in a vacuum chamber using electrical resistance heating, will close in the resistance wire on the metal wire (Lvsi) vaporization melting, vaporization of the metal elements deposited on the substrate, but was Smooth high reflectivity of the coating to the surface of decorative items landscaping purposes.
Plastic evaporation vacuum metallizing machine is: A reasonable structure, coating evenly into good-quality, pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability. Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys and other industries.
Machinable materials include: ABS, PS, PP, PC, PVC, nylon, metal, Boli, glass, ceramics, such as TPU.
Electroplating effects can include: General electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, 288;
Coating color: Gold, silver, red, blue, green, purple, 288, and so on.
The company can design all based on user requirements specification models of Vacuum Coaters. Vacuum units and electric control system can be designed according to user requirements configuration.
Remark:
1-We can make design the dimension of the equipment according to clients'special technique requiremnet.
2-All the vacuum coating machines are the environmental prodection products, which will replace the traditional galvanization industries in future.
| Mode Dimension | ZZ-1214 | ZZ-1416 | ZZ-1618 | ZZ-1820 |
| 1200*1400mm | 1400*1600mm | 1600*1800mm | 1800*2000mm | |
| Film Type | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc. | |||
| Power source Type | Thermal evaporation power, ion bombard power, RF power | |||
| Vacuum chamber structure | Vertical double/single door, horizontal single door, pump system postposition | |||
| Ultimate vacuum | 8.0*10 -4 Pa | |||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump | |||
| Pump time | Pump from atmosphere to 5.0*10 -2 ,6 minutes | |||
| Workpiece motion mode | Public rotation/Frequency control | |||
| Control mode | Manual/Automatic all-in-one mode, Touching screen+PLC | |||
| Remark | We can design the dimension of the vacuum chamber according to customer's demand. | |||
Turn-key project could be offered
Main process: Base coat---UV tunnel--- vacuum coating---top coat----UV tunnel
Coating color: Gold, silver, red, blue, green, purple, multi color, and so on. (Whatever color you want, you could spray the top oil to make colorful)
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
Machine pic,vertical double door chamber: Coating color: Gold, silver, red, blue, green, purple, multi color, and so on. (Whatever color you want, you could spray the top oil to make colorful)
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
Vacuum metallizing machine:
Auto Painting system:
UV curing line:

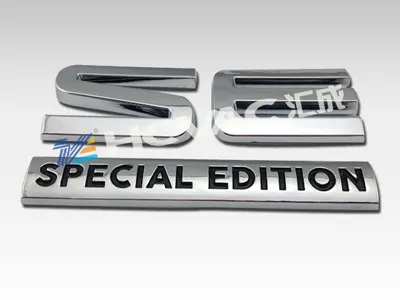

Sample coated by our machine:
Aluminum film deposition to make metallized:
Spray top painting to get all kinds of colors:
