Basic Info.
Model NO.
Ni60cr15 Plate
The Highest Use Temperature
1150c
Resisivity
1.11
Density
8.2g/cm3
Sample
Free
Surface
Bright or Black Skin
Packing
Standard
OEM
Yes
Tensile Strength
730
Yield Strength
370
Transport Package
Wooden Cases or Cartons
Specification
2-3mm
Trademark
Huona
Origin
China
HS Code
7505220000
Production Capacity
2000ton/Year
Product Description

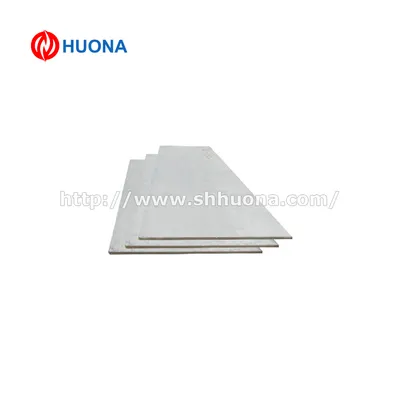

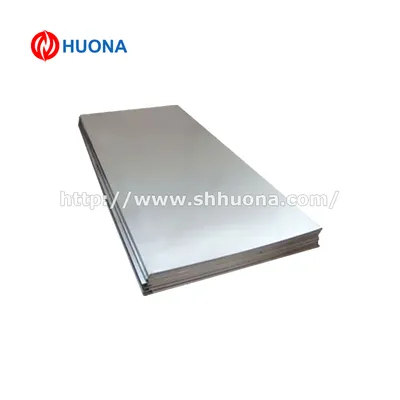

Ni60Cr15 High Temperature Thermistor Resistance Alloy Plate
1.About Nichrome NiCr6015Nichrome alloy NiCr6015 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
2.NiCr6015 has many other Grade name:
Ni60Cr15,Chromel C,N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675, MWS-675, Stablohm 675,NiCrC
3.Chemical Composition of NiCr6015
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
4.Typical Mechanical properties of Nicr6015
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 370 | 730 | 35 |
5.Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
6.All shape of Nichrome
Wire, ribbon( flat wire ), strip, bar, plate, tube
7.size of NiCr6015
| Wire | 0.018mm-10mm |
| Ribbon | 0.05*0.2mm-2.0*6.0mm |
| Strip | 0.5*5.0mm-5.0*250mm |
| Bar | 10-100mm |
