Basic Info.
Model NO.
JFWC080
C
6%
Granularity
≤2μm; 2-10μm
Standard
GB
Transport Package
Packing in Drums on Plate, Inner Plastic Bags
Specification
20-50kg per bucket
Trademark
JUPAI
Origin
Qingdao China
HS Code
810110000
Production Capacity
1000ton/Year
Product Description

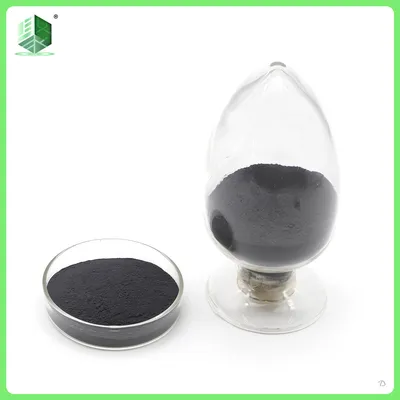

High purity tungsten carbide powder
Product Description:
Physical properties: solid gray metal powder. Sealed with inner plastic bag, vacuum packing. Packing in iron drum, 50kg net weight per barrel, 100kg optional. The particle size, carbon content, additives and physical properties of tungsten carbide powder can be adjusted according to the specific requirements of customers.
Application fields:
It is mainly used in the electronics industry, widely used in the production of carbide cutting tools, metal mining and geological drill bit tipped, tensile stamping die, wear-resisting, corrosion resistant parts suitable for machining under the high temperature, cutting tool, the structure of the kiln, the material can be made up, jet engines, gas turbine, nozzle, penetrator bomb core, etc
1. Tungsten Carbide (WC) is the main raw material for the production of cemented carbide. Its chemical formula is WC. Its hardness is similar to that of diamond. It is a good conductor of electricity and heat
2. Tungsten carbide powder not only has high hardness, but also has the characteristics of wear resistance, corrosion resistance and high temperature resistance
3. Melting point of tungsten is 2860 ºC± 50 ºC, boiling point is 6000 ºC, relative density is 15.63 (18 ºC), insoluble in water, strong acid resistance, high hardness and elastic modulus
4. Pure tungsten carbide is fragile. If a small amount of titanium, cobalt and other metals are added, the brittleness can be reduced. Tungsten carbide, which is used as a steel cutting tool, is often added with titanium carbide, tantalum carbide or their mixture to improve its explosion resistance.
| Composition | WC | C | uncombined carbon | Fe | Al | Si | Ca | Mg | Mo | K+Na | Co | Ti |
| Content (≤%) | ≥99.8% | 6.12±0.04 | 0.08 | 0.02 | 0.002 | 0.003 | 0.002 | 0.002 | 0.01 | 0.002 | - | - |
| Model NO. | average particle size (μm) | oxygen content (%) |
| JFWC010 | 0.8-1.0 | 0.12 |
| JFWC020 | 1.0-1.5 | 0.10 |
| JFWC030 | 1.5-2.0 | 0.08 |
| JFWC040 | 2.0-2.5 | 0.06 |
| JFWC050 | 2.5-3.0 | 0.04 |
| JFWC060 | 3.0-4.0 | 0.03 |
| JFWC070 | 4.0-5.0 | 0.03 |
| JFWC080 | 5.0-7.0 | 0.03 |
| JFWC090 | 7.0-15.0 | 0.03 |
| JFWC100 | 15.0-25.0 | 0.02 |
