Basic Info.
Product Description

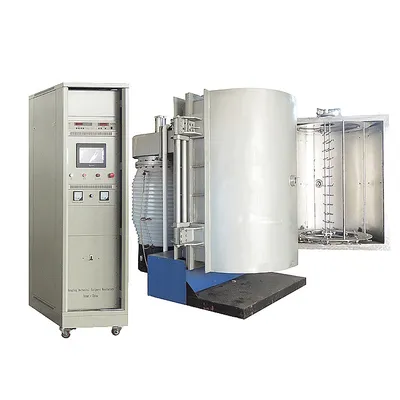

Vacuum Metallizing Process Maquina Para Accesorios Para Cromar Ataudes
This machine can apply metallizing coatings on plastic, ceramic, glass, and metal items.
Brife Description
This vacuum coating machine is used for thermal evaporation. It is used fir aluminum deposition for lighting reflectors, cosmetics and paint metal paint decorative finishes.
Vacuum Chamber Type
Vertical/Horizontal Batch
Two door with rotating tooling fixtures
Optimized Coating Area
Technical Summary
High power thermal resistive evaporation system provides high brightness aluminum coatings for a wide range of plastics and metal substrates.
Coating Method Options
Resistive Thermal Evaporation/Magnetron Sputtering
Features
Dual Manual Door with Quick Change Fixturing
Networking Compatible with On-Board Diagnostics
Easy operation, low average production costs
| Structure of the Evaporation Metallizing Machine |
1. Vacuum Metallizing Machine - Technical Specifications:
| Mode | EV-1000 | EV-1200 | EV-1600 | EV-1800 |
| Dimension | D1000*H1100mm | D1200*H1400mm | D1600*H2000m | D1800*H2000m |
| Main Applications | Plastic or glass metallizing, decorative coatings | |||
| Coating System | Evaporation Coating System with high power transformer | |||
| Vacuum chamber structure | Vertical chamber front opening door, one or two doors, as well as two chambers optional | |||

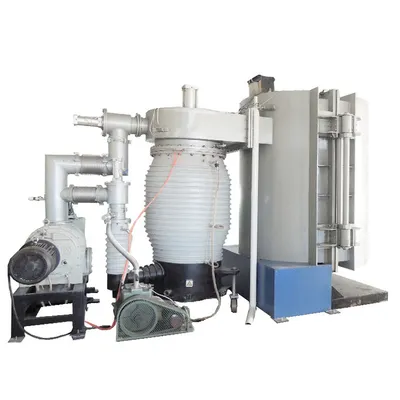

| Pumping system | Diffusion pump(Molecular pump) +Roots pump +Mechanical pump (5.0*10-4Pa) | |||
| Workpiece Carousel | Public rotation Frequency control: 0-20RPM | |||
| Vacuum degree measuring | Digital display composite vacuum gauge: from atmosphere to 8.0*10-4Pa | |||
| Control mode | Manual/Automatic work mode by PLC touched screen | |||
| Remark | We can make the machine according to customer's requirements. | |||
Typical Applications
Products: Cups, handicrafts, decorations, toys and other products are coated with aluminum, chrome and other metal films. Vacuum aluminum evaporation coating can make the surface of the plated parts have metallic, or red, purple, blue, green and other colors. Cosmetic packaging, plastic bottle caps, glass aluminum mirrors, car lights, heels, gifts, Christmas balls, car lights, car wheels, sanitary ware accessories, etc.
We produce vacuum metallizing machine, arc deposition machine(also called "arc ion plating machine") and magnetron sputtering machine.
We have been providing good quality PVD systems and constant technical service for our clients all over the world.
As a manufacturer of PVD coating systems, Hondson VAC responds to your wishes and supply you with a tailor-made system that meets your needs. To improve profitability, we build on our proven cylindrical standard recipients, but any other type of vacuum chamber is also possible. Contact us!
In order to help you choose the best suitable PVD coating machine, please try to reply my questions below, thanks for your cooperation.
Q1: What is your product, and the max. dimension?
Q2: The size of your processing material, your desired daily production capacity?
